고분해능 이차이온 질량분석기

Home 연구활동선도연구장비고분해능 이차이온 질량분석기 장비활용내용

장비활용내용 < 고분해능 이차이온 질량분석기 < 선도연구장비

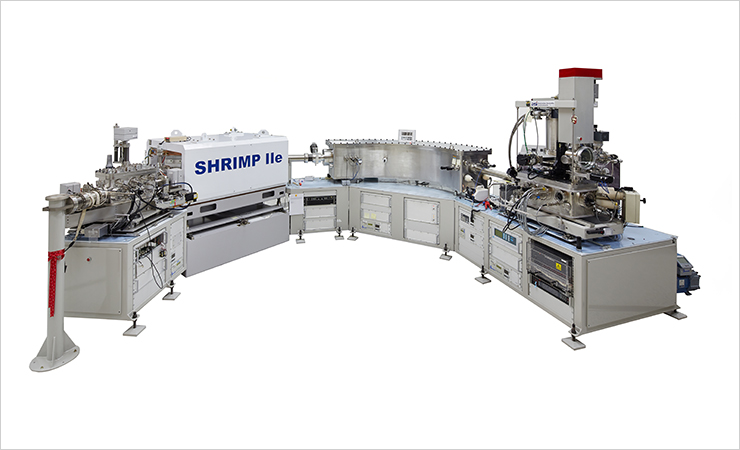

  • 고분해능 이차이온 질량분석기 이미지

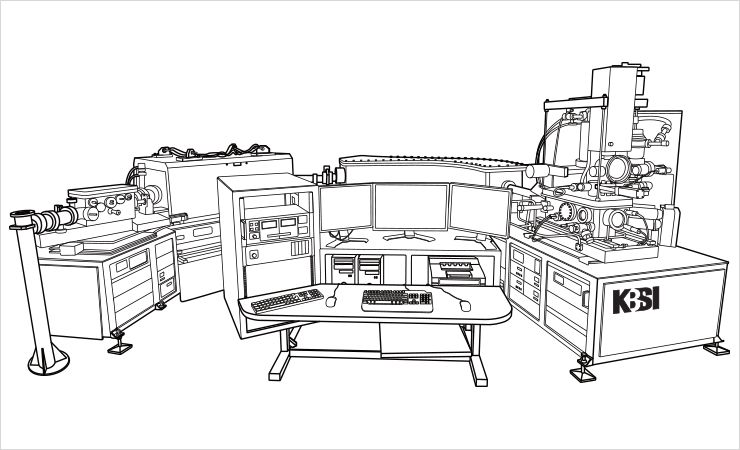

  • 고분해능 이차이온 질량분석기 일러스트

장비소개

고체물질의 미세 영역에 대한 동위원소비를 측정할 수 있는 고분해능 이차이온 질량분석기(SHRIMP)를 지질연대 및 미량동위원소 표면분석 연구에 활용하고 있습니다.

장비특성

  • 국내 최초 고분해능 이차이온 질량분석기
  • 50% 투과율과 10,000 질량분해능으로 1 ppm 검출한계 유지
  • 동위원소 동시 분석이 가능한 다중검출기
  • 안정동위원소 분석을 위한 낮은 배경값의 패러데이 검출기

장비활용 대표연구성과

영남육괴 약 18.6억년의 산청-하동 회장암과 관련되어 지속된 고온-저압의 변성작용 연구

영남육괴 산청-하동지역 혼성암질 편마암내 저어콘과 모나자이트에 대한 SHRIMP U-Th-Pb 연대측정을 통해 회장암과 관련된 고온-저압의 변성작용이 약 15 Ma 이상 지속되었으며, 이는 북중국 지괴의 고원생대 (약 19.5억-18.5억년) 뜨거운 조산운동 최후기 산물에 해당될 수 있음을 시사함

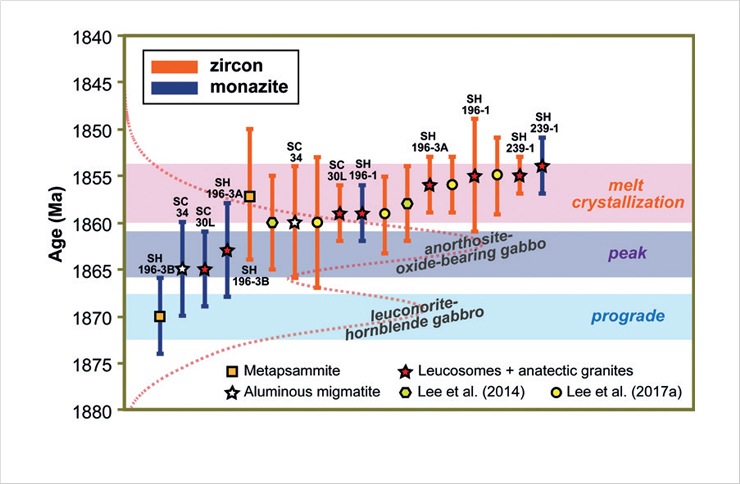

점진적인 고온-저압 변성작용을 보여주는 연대 도표점진적인 고온-저압 변성작용을 보여주는 연대 도표

주요 활용분야

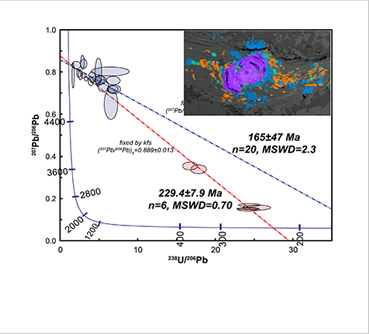

  • 우라늄-납 동위원소 연대측정 이미지 우라늄-납 동위원소 연대측정

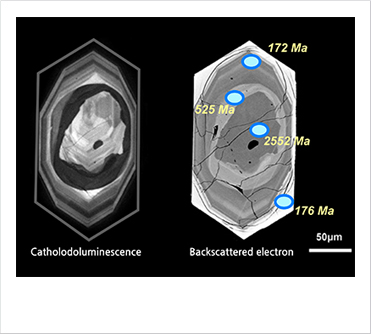

  • 미세조직 동위원소 표면 정밀분석 이미지 미세조직 동위원소 표면 정밀분석

장비활용 대표 우수논문

  • Lead oxide nanospheres in seismically deformed zircon grains
    Kusiak M.A., Kovaleva E., Wirth R., Klötzli U., Dunkley D.J., Yi K., Lee S.,
    Geochimica et Cosmochimica Acta, 2019, 262(), PP 20-30, doi:10.1016/j.gca.2019.07.026
  • Tectonomagmatic evolution of a Jurassic Cordilleran flare-up along the Korean Peninsula: Geochronological and geochemical constraints from granitoid rocks
    Cheong A.C.-S., Jo H.J.
    Gondwana Research, 2020, 88, pp 21-44, doi:10.1016/j.gr.2020.06.025
  • Late Paleoproterozoic evolution of the buried northern Gawler Craton
    Armit R., Betts P.G., Schaefer B.F., Yi K., Kim Y., Dutch R.A., Reid A., Jagodzinski L., Giles D., Ailleres L.,
    Precambrian Research, 2017, 291 (), pp 178-201, doi:10.1016/j.precamres.2017.01.023
  • Eocene granitoids of northern Turkey: Polybaric magmatism in an evolving arc–slab window system
    Yener Eyuboglu, Francis O. Dudas, Derek Thorkelson, Di-Cheng Zhu, Ze Liu, Nilanjan Chatterjee, Keewook Yi, M. Santosh,
    Gondwana Research GR-01810; No of Pages 35 (2017), doi: 10.1016/j.gr.2017.05.008
  • Metamorphic and magmatic evolution of the Paleoproterozoic gneisses in the Sancheong area, Yeongnam Massif, South Korea, and their implications to the tectonics in the Northeast Asia
    Byung Choon Lee, Jong Hyun Park, Chang Whan Oh, Keewook Yi,
    Precambrian Research 298, 439-461 (2017), doi: 10.1016/j.precamres.2017.06.001
  • Early oligocene partial melting via biotite dehydration melting and prolonged low-pressure–low-temperature metamorphism of the upper high himalaya crystalline sequence in the far east of nepal
    Imayama T., Takeshita T., Yi K., Fukuyama M.,
    Geological Society Special Publication, 2019, 481(1), PP 147-173, doi:10.1144/SP481.2
  • Crustal evolution in the Gyeongsang Arc, southeastern Korea: Geochronological, geochemical and Sr-Nd-Hf isotopic constraints from granitoid rocks
    Albert Chang-Sik Cheong, Hui Je Jo,
    American Journal of Science vol. 317 no. 3, 36-410 (2017), doi: 10.2475/03.2017.03
  • In-situ oxygen isotope records of crustal self-cannibalization selectively captured by zircon crystals from high-δ26Mg granitoids
    Hui Je Jo, Albert Chang-sik Cheong, Jong-Sik Ryu, Namhoon Kim, Keewook Yi, Haemyeong Jung, Xian-Hua Li,
    Geology (2016) 44 (5): 339-342, doi: 10.1130/G37725.1
  • Crustal thickening by tectonic wedging of the Ganderian rocks, southern New England, USA: Evidence from cataclastic zircon microstructures and U–Pb ages
    Robert P. Wintsch, Keewook Yi, Michael J. Dorais,
    Journal of Structural Geology 69, 428-448 (2014), doi: 10.1016/j.jsg.2014.07.019
  • Tracing Archaean terranes under Greenland's Icecap: U–Th–Pb–Hf isotopic study of zircons from melt-water rivers in the Isua area
    Keewook Yi, Vickie C. Bennett, Allen P. Nutman, Seung Ryeol Lee,
    Precambrian Research 255, 900-921 (2014), doi: 10.1016/j.precamres.2014.04.006

담당자 및 설치장소

  • 주담당자 : 이신애(lsa2011@kbsi.re.kr/043-240-5172)
  • 부담당자 : 이기욱(kyi@kbsi.re.kr/043-240-5175)
  • 주소 : 충북 청주시 청원구 오창읍 연구단지로 162 한국기초과학지원연구원 오창센터 SHRIMP동 111호
